  1218  :: double deck roll forming machine
  Company Name : Abzar Machin





Specifications

Specialized with 12 years' experience.
produce 2 different profiles.

fast forming speed, easy use.

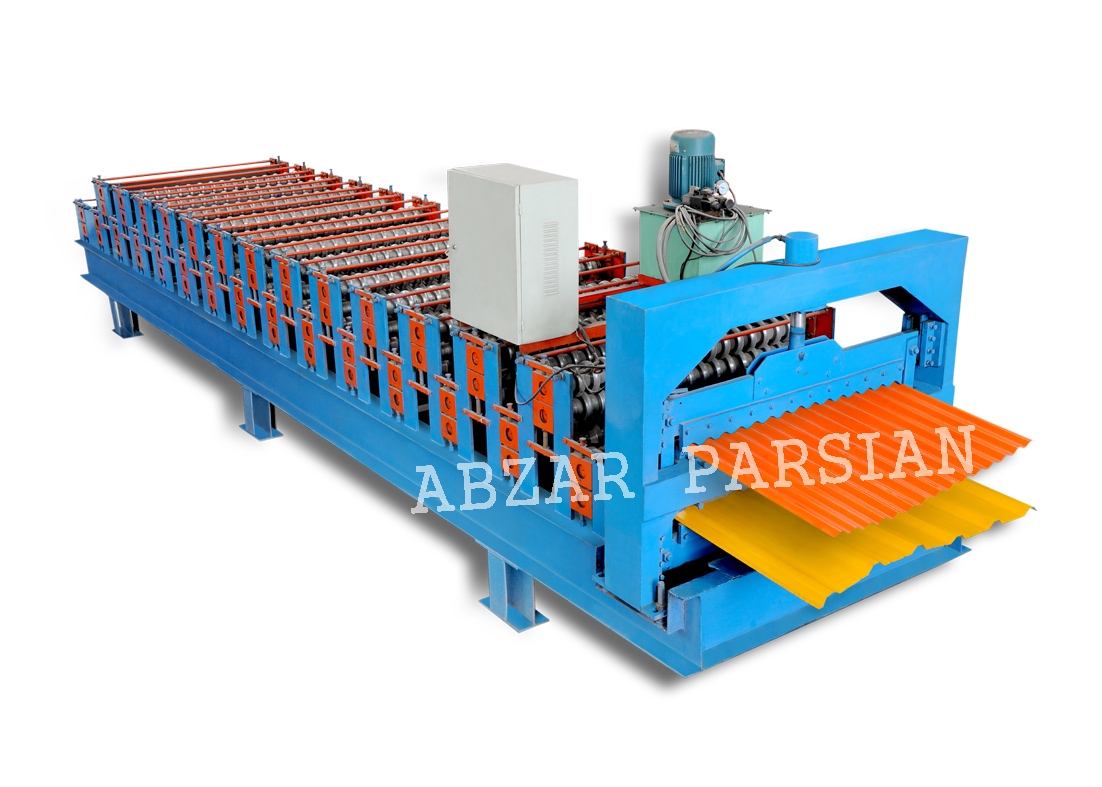

 Standard Double Layered Trapezoidal Roll Forming Machine, YX840-900



Specialized in the filed of roll forming machine since 1998, with 12 years' experience.  manufacture both standard and customized Double Layered Trapezoidal Roll Forming Machine, as per their specific needs and requirements.



Standard Double Layered Trapezoidal Roll Forming Machine, YX840-900



1. General



This roll forming machine can separately produce corrugation roof and trapezoidal roof in one machine. You can also choose other 2 profiles to produce in the double layer forming machine. Automatically cut to length, PLC control, and Frequency Converter.



This line consists of 5-Ton Mechanical uncoiler, guiding and feeding device, DUAL LEVEL roll former, run out table, PLC controller, hydraulic post-cutting equipment, electrical control system, hydraulic system, etc.

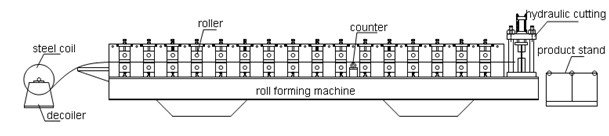

2. Producing Process Sketch

decoiling the sheet-sheet guiding -roll forming-measure length -cutting the panel-panels to the supporter

 Double Layered Trapezoidal Roll Forming Machine, YX840-900





3. Technical Parameters



NO

Item

Parameters

1

Suitable material

Type

Pre-Painted or Galvanized Steel Sheet

Thickness (mm)

0.2-0.8mm

Yield Strength (Mpa)

235Mpa

Coil Width (mm)

1000, 1200 or 1250mm

2

Forming Speed (m/min)

10-12m/min

3

Power

AC380V,50Hz,3 Phase

3

Main Motor Power

5.5KW

4

Hydraulic Station Power

4KW

7

Dimension (L×W×H, m)

about 6.8×1.7×1.8



Roller Material

High grade No. 45 forged steel, with digital-controlled procession, hard chrome plated

Active Shaft Material

High grade No. 45 carbon wrought steel, which can improve the integrated mechanic feature of the shaft

Cutting blade

Cr12 mould steel with quenched treatment.

Electric Elements:

screen display

Delta, 5.7 inch

PLC

Delta DVP14ES

frequency converter

Delta



Products Warranty: 12 month, and we will provide the technical support for the whole life of the equipment
