 guard rail production line

Specifications
Expressway Guardrail Roll Forming Machine,Highway Guard Rail Roll Forming Machine
1)we are the manufacture
2)good quality
Expressway Guardrail Roll Forming Machine,Highway Guard Rail Roll Forming Machine
Cold roll forming mahcine, color steel roll forming machine,highway guardrail roll forming machine, three waves highway guardrail machine,crash barrier roll forming machine,roof and wall panel machine,decking floor roll forming machine,floor decing forming mahcine, stud and track roll forming machine, Z and C purlin machine

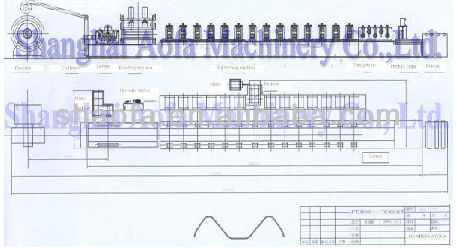

Profile drawing:

Working flow:
Decoiler----feeding-----guiding------leveling-----punching----forming----cutting -----output table
Expressway Guardrail Roll Forming Machine,Highway Guard Rail Roll Forming Machine

Machine Components:

No.

Name

Qty.

1

decoiler

1set

2

guiding and leveling device

1set

3

punching device

1set

4

forming device

1set

5

cutting device

1set

6

output table

1set

Techical description:
1.De-coiler
1) Type:Manual
2) Loading 5T. Inner diameter of coil: φ508mm,
3) Maximum diameter of coil: φ2000m

2.Flatting device
The wall plate type seven roller flatter, two rollers clamp deliver, five rollers for leveling.

3.Punching device
1) Using  type Yl32-315 4 pillar hydraulic pressure puching machine,
2) Hydraulic pressure power: 11kw.
3) Material of blade mould & plunger chip is alloy steel Cr12

4.Forming machine:
1) Forming racks: 13sets
2) Width of machine: 550mm
3) Material thickness:3mm
4) Shaft diameter:80mm
5)Roller material:45# steel polished and coated with chrome HRC55-60°
6)Shaft material:high grade No.45 steel after treatment
7)Power of main machine: 55kw
8)Driven type:1.5 inch double chain

5)Cutting device
Material for Cut-Off Modular:Cr12 steel
Hardness for Heat Treatment:HRC55 – 60°
Cut-Off Type:Hydraulic, Automatic Cut-Off
Cut-Off Modular:1 set
Motor for Hydraulic Stand: 11kw

6)Control system:
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ±2mm

7)Output table
It is simple and used to load finished product.
Length:6m
